9mm Metal Knurled Shaft 500 ohm Potentiometer Switch,WH9011AK-1
Request a Quote
Part Number
WH9011AK-1
Parameters
| Diameters | 9mm |
| Total rotational angle | 300°±10° |
| Rotational torque | 50~250gf.cm |
| Stopper strength | ≥4kgf |
| Total resistance | 500Ω-1MΩ |
| Resistance tolerance | ±20% |
| Shaft Types | knurled shaft |
| Element | carbon film |
| Rated power | ≤0.05W |
| Voltage proof | 500V AC for 1 minute |

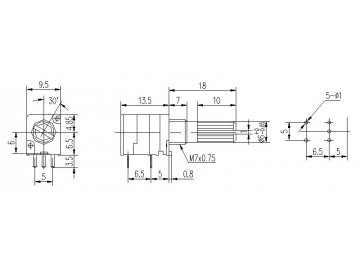

Dimensions
