RYQ-160

Soft-bearing balancing machine (belt drive) for workpieces with diameter of up to 1080mm and weight of 3-160kg

Soft-bearing horizontal balancing machine with belt drive, suitable for rotors up to 1080 mm in diameter and 160 kg in weight
Suitable for different types of rotating components
Before operation, users simply enter the size and radius parameters of the correction planes. Once the rotor is started, the system displays both the unbalance amount and its phase

Applications

Uue dynamic balancing of motor rotors, fan impellers, turbocharger rotors, crankshafts, machine tool spindles, and long roller parts used in paper-making and printing machinery.

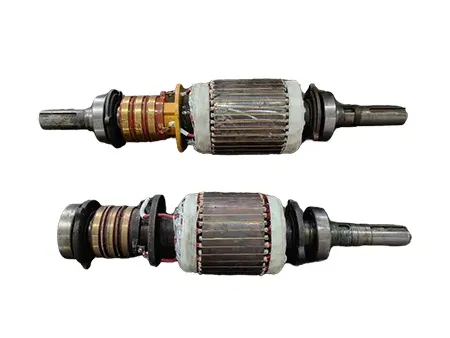

Motor rotors balancing

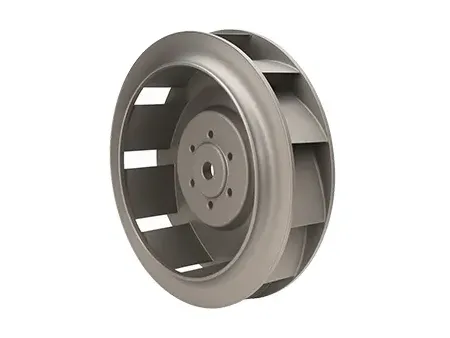

Fan impellers balancing

Specifications

Workpiece weight	3-160kg
Max. workpiece diameter	Ø1080mm
Journal diameter of workpiece	Ø10-Ø90mm
Distance between two bearing supports	110-1800mm (or based on negotiation)
Balancing speed	250-3000r/min
Min. achievable residual unbalance (eMar)	0.2g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Operated through a menu interface that allows user-friendly interaction.
Built with an industrial control computer design, ensuring safety and reliable performance even in harsh production environments.
The circuits for amplification, filtering, and calculation are built in modular form, which makes maintenance easier and quicker.
Fully digital circuit operation provides high precision, and program control leaves room for future upgrades.
The unbalance value is displayed directly in grams (g).
