Label converting machine

Daba Machinery provides slitter rewinder added with a full rotary die-cutting system, suitable for die-cutting, laminating (optional), and slitting of blank adhesive labels. The rotary die cutting machine features functions of automatic meter counting, auto-stop, and photoelectric edge correction.

Applications

Packaging, electronics, leather clothing, etc.

Applicable Materials

Suitable for paper, sandpaper, tapes, protective films, copper foils, aluminum foils, felt pads, fabrics, OPP, PE, PVC, PET, etc.

Features
  • Steel-coated frame ensures sturdiness and durability.
  • Electronic components are integrated within the machine frame.
  • Two ways of adjusting unwinding tension: by magnetic powder clutch or by manual.
  • Axial flow fan is equipped for disposing waste materials.
  • Minimum slitting width of 20mm.
  • Dual photocells control the unwinding process with edge guiding and automatic correction, which ensure accurate material positioning.
  • The drive motor includes a pressure roller and rubber roller to increase friction and material compaction, resulting in tighter rewinding.
  • Pressure of the roller is adjustable.
Specifications
Model DBFQ-320B
Slitting Speed 120m/min
Die-cutting Speed 120m/min
Maximum Substrate Width 320mm
Maximum Unwinding Width 700mm
Maximum Rewinding Width 480mm
Die-cutting Length 178-470mm (7-8.5 inches)
Dimensions (L*W*H) 1800mm*1100mm*1500mm
Weight 1200kg
Power Supply 380V/220V 50HZ (customizable)
Details
  • Unwinding Unit

    Automatic changeover saves time and labor

  • Die-cutting Station
    • Die-cutting Length: 178~470mm (7-18.5 inches)
    • Rotary feature allows for top-to-bottom die-cutting
    • Adjustable waste rewinder
    • Magnetic powder clutch
    • 3-inch air-expanding shaft

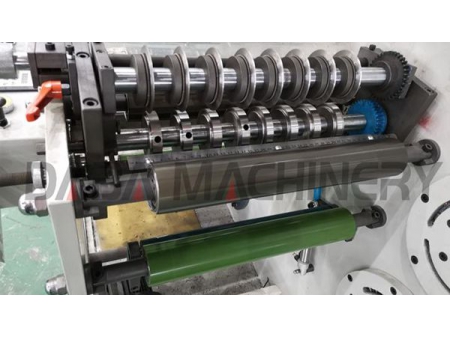

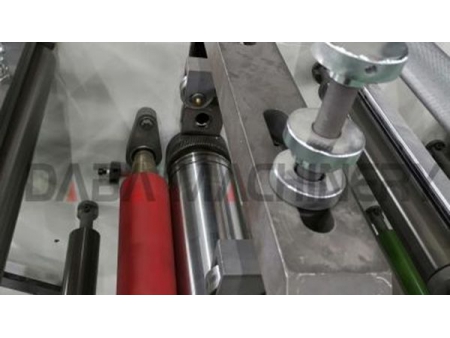

  • Slitting Station
    • Round/Square slitter optional
    • Minimum Slitting Width: 17mm
    • 8 sets of slitters

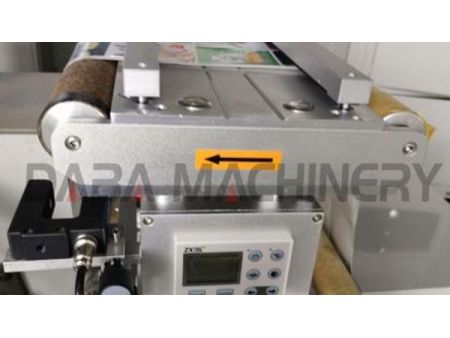

  • Guiding Rail

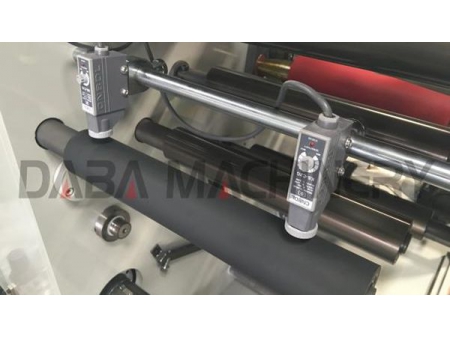

    • Two photoelectric sensors
  • Splicing and Alignment Correction Station

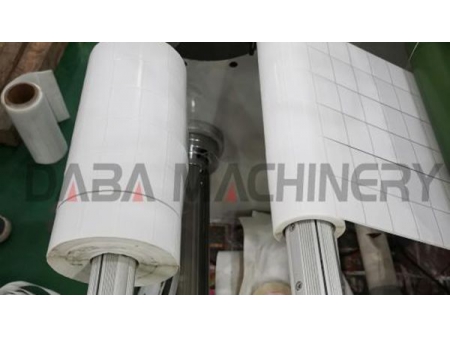

  • Waste Rewinding Unit
Optional
  • Die-cutting module
  • One extra set of slitters
  • Laminating system
  • Air-expanding shaft: 1-inch, 1.5-inch, 3-inch
