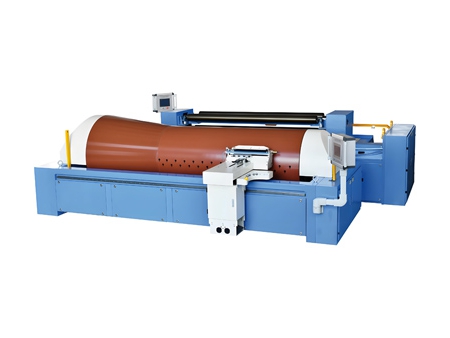

KGA163S Sectional Warping Machine (Filament Yarns)
Request a Quote
This sectional warping machine model features digital controls and a well-integrated structure designed for consistent tension and smooth yarn winding. It’s particularly suited for small-batch sampling and multi-variety production, offering a cost-efficient solution for sectional warping of fine denier and microfiber filament yarns, including sizing applications.
Features
- The beaming unit, leasing reed stand, yarn guide frame, and creel are all fixed in position, maintaining consistent alignment throughout the warping process.
- Yarn alignment stays centered from start to finish, helping ensure uniform tension across the warp sheet and consistent winding quality.
- The warping table moves backward automatically via servo control in sync with drum rotation, maintaining a consistent distance between the reed and yarn surface, adjustable to reduce spreading, especially useful for high-density or heavyweight fabrics.
- The braking system combines pneumatic and hydraulic functions, offering smooth and precise control while remaining clean and reliable.

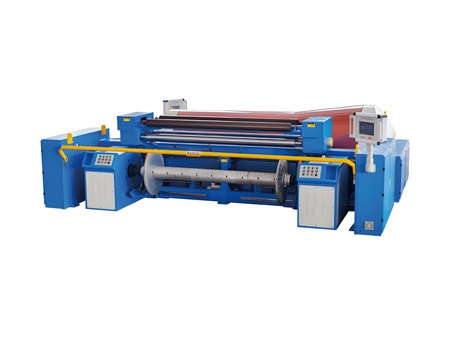

- The beaming section features a dual-layer guide roller design with hydraulic control for upper and lower beam operation. An optional triple-roller tensioning system can be configured if needed.
Machine specifications
| Working width | 2000-3600 mm |
| Beam flange diameter | ≤1000 mm, ≤800 mm |
| Warping speed | 0-600 m/min, 0-700 m/min |
| Beaming speed | 0-100 m/min, 0-200 m/min |
| Deviation of linear speed (warping & beaming) | ≤±2% |
| Braking distance | ≤3 (at a linear speed of 500m/min) |
| High beaming tension | ≤8000 N, ≤10000 N (at a beaming speed ≤50m/min) |
| Low beaming tension | ≤3N, ≤50N |
| Drum diameter | 1026 mm |
| Cone length | 1360 mm, 1010 mm |
| Cone angle | 9°, 7.125° |
| Section traverse speed | 0.001-9.999 mm/r (stepless) |
| Section traverse accuracy | ±0.01 mm |
| Distance between reed and drum | Constant (adjustable) |
| Spindle space | 290×290 mm (filament yarn) 250×250 mm (wool, cotton and blended yarn) |
| Number of bobbins | 420 pcs (wool, cotton and blended yarn) 480 pcs (filament yarn) |
