IQF Spiral Freezer
Request a Quote
Individual Quick Freezing System
The IQF spiral freezer is widely used for the rapid freezing of seafood, portioned meats, prepared foods, ice cream, bakery products, and small packaged foods. It is especially suited for products requiring longer freezing times, higher input temperatures, and larger production volumes, offering an efficient and reliable freezing solution for small and delicate food processing needs.
Single Drum Spiral Freezer
- Freezing Capacity 1000-3000 kg/h
Technical Parameters
| Model | | | |
| Frozen Product | Raw Chicken Drumstick | ||
| Weight | 120±10g | ||
| Infeed Temperature | 15℃ | ||
| Outfeed Temperature | -18℃ | ||
| Chamber Temperature | -35℃ | ||
| Drum Diameter | 2000mm | 2530mm | 3000mm |
| Number of Layer | 12 | 16 | 14 |
| Belt Width | 650mm | 710mm | 1000mm |
| Freezing Capacity | 1000kg/h | 2000kg/h | 3000kg/h |
| Power | 31.8kW | 48.8kW | 64.8kW |
Twin Drum Spiral Freezer
- Freezing Capacity 500-2000 kg/h
Technical Parameters
| Model | | | |
| Frozen Product | Raw Chicken Drumstick | ||
| Weight | 120±10g | ||
| Infeed Temperature | 15℃ | ||
| Outfeed Temperature | -18℃ | ||
| Chamber Temperature | -35℃ | ||
| Drum Diameter | 2000mm | 2530mm | 3000mm |
| Number of Layer | 12 | 14 | 22 |
| Belt Width | 650mm | 800mm | 850mm |
| Freezing Capacity | 500kg/h | 1000kg/h | 2000kg/h |
| Power | 16.8kW | 25.3kW | 45.3kW |

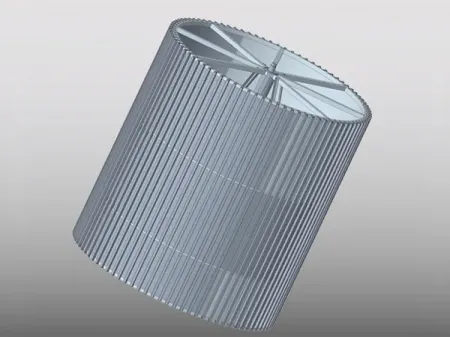

- Rotating Drum

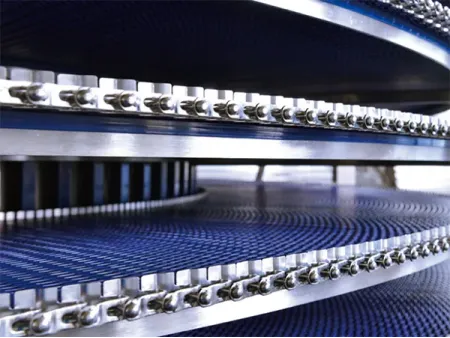

- Spiral Conveyor Belt
- Thermal Insulation
