Fan Impeller Balancing Machine (Integral Type)

Request a Quote

Website: http://balancingmachine-en.com/4-7-fan-impeller-balancing-machine.html

YFW-10000

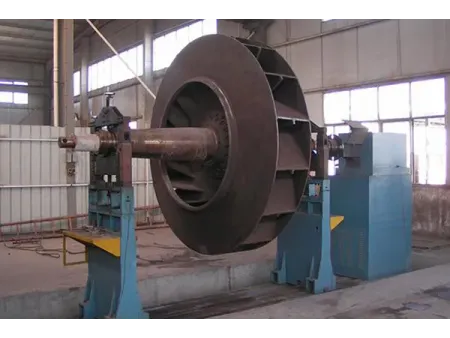

Hard-bearing balancing machine for dynamic balancing of fan impellers and blowers

The YFW-10000 is an integral hard-bearing balancing machine designed for large fan manufacturers. With its integrated structure, it is suitable for balancing large centrifugal rotors, blower rotors, machine tool spindles, and paper machine drums.

The balancing machine adopts a gearbox speed control system combined with an AC motor and frequency converter, ensuring flexible speed adjustment and stable performance. Its modular design allows for easy replacement and testing of different rotor types, making it highly versatile across a wide range of applications.

Specifications

Workpiece weight	500-10000kg
Accidental overload of each support	6000kg
Max. workpiece diameter	3500mm
Journal diameter of workpiece	60-320mm
Distance between two bearing supports	5200mm (or based on negotiation)
Balancing speed (stepless speed control)	180-1400r/min
Min. achievable residual unbalance (eMar)	≤2g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Available with multiple universal coupling specifications, giving users the flexibility to choose based on rotor type
Equipped with either the ZL-220 embedded measurement system or the advanced ZL-2 industrial control system, meeting diverse operational needs
ZL-220 system: proven embedded solution with strong market adoption and user recognition
ZL-2 system: based on NI LabVIEW technology, featuring an intuitive, user-friendly interface, adaptable to various user levels and testing environments, which can also be extensively expanded and customized for specific user requirements
