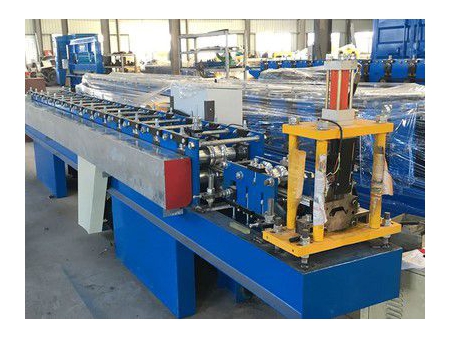

JM85 Roller Shutter Door Roll Forming Machine

JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
JM85 Roller Shutter Door Roll Forming Machine
Request a Quote

JM85 roller shutter door roll forming machine is developed for the production of slats for roller shutter door. The machine can roll form 0.8-1.2mm thick and 85mm wide materials.

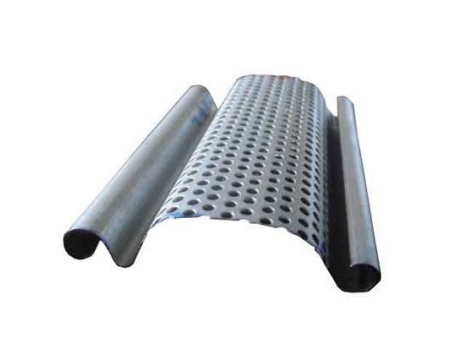

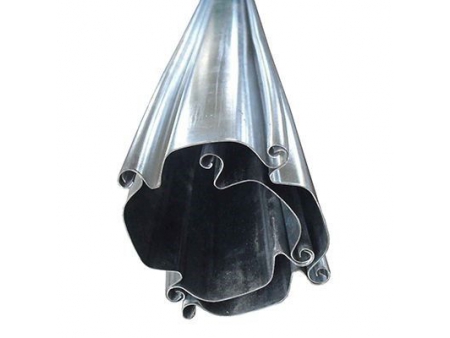

Samples

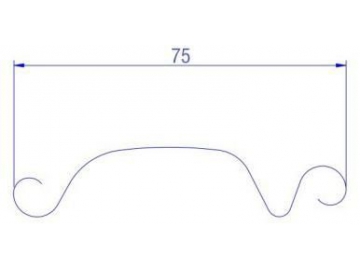

Profile Drawing
Features
  • Easy operation, low maintain cost
  • Higher cost performance
  • High quality with faster working speed, max speed can reach 30m/min
Specifications
Model JM85
Dimension 5500*1000*1400mm
Motor Power 4KW
Hydraulic Power 1.5KW
Forming Speed 8-12m/min
Voltage 380V/50HZ/3PH
Forming Steps 14 3 steps for reshaping
Material Thickness 0.8-1.2mm
Effective Width 85mm
Roller Material Gcr15 steel plate hard chrome on the surface
Cutter Material Cr12Mov with heat treatment
Control System PLC Control
Details

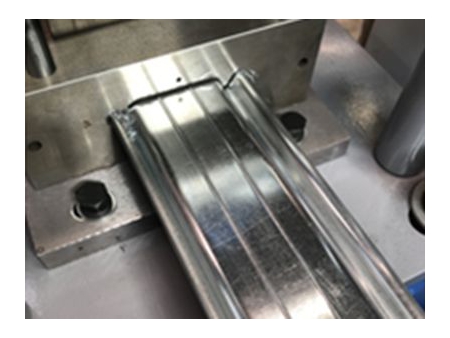

  • Cutter is manufactured by Cr12 mold steel, with HRC58-60 heat treatment for high quality and long service life.

  • Roller is made by high quality Gcr15 mold steel with CNC lathes.
    Plate hard chrome coating is optional for long service life.
    Body frame is welded with use 400# H bean.

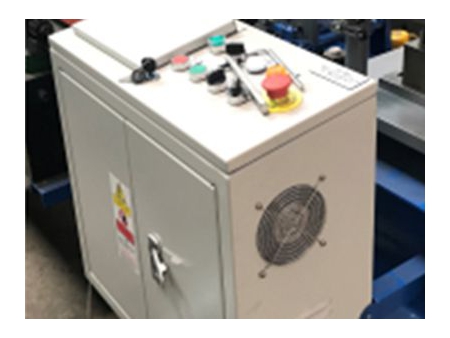

  • PLC control system can be chosen from Schneider, Siemens, and Delta.

Main Accessories
  • Main machine
  • 3 tons manual uncoiler
  • Hydraulic forming cutter
  • Hydraulic system
  • PLC computer controlling system with touch Screen (Brand: Schneider)
  • Tools
  • Operation manual

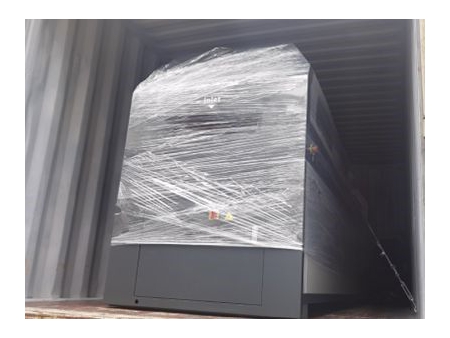

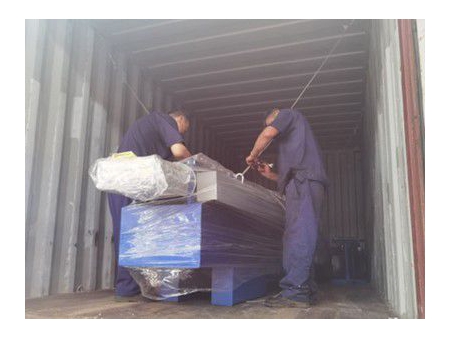

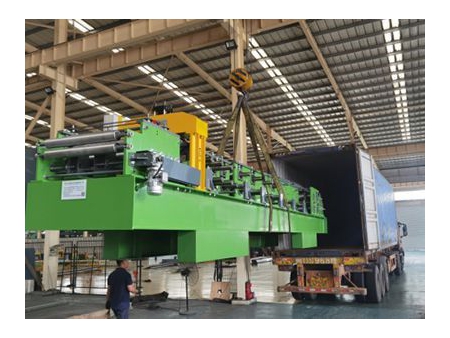

Transportation Package
Customer Show
Company Exhibition
