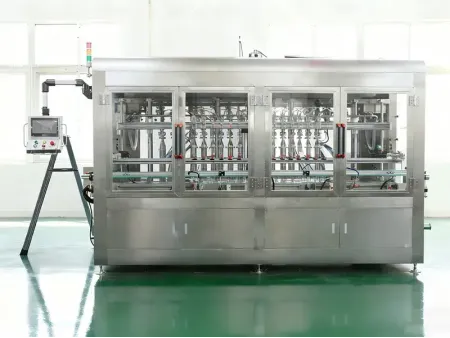

Automatic Overflow Filling Machine
Inline filling system with overflow filler capable of ensuring consistent fill levels for low-to-medium viscosity liquids
The automatic overflow filling machine achieves a uniform filling height through precise liquid level control, making it particularly suitable for transparent bottle products with high aesthetic requirements.
Its overflow design can automatically recycle excess liquid, preventing leakage and reducing waste, while easily handling low-to-medium viscosity liquids prone to foaming, such as fruit juice, glass cleaner, vinegar, mouthwash, and chemicals. The overflow filling equipment is outfitted with PLC touch screen control, enabling a stable, efficient, and user-friendly filling process, ensuring consistent appearance and high-quality production.

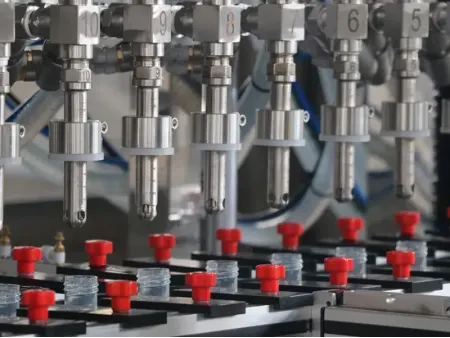

- 304/316 Stainless Steel Filling Nozzles
Utilize the principle of overflow to ensure precise fill volumes, same liquid level and prevent liquid leakage, resulting in high quality filling operations with consistent appearance, less foaming, and cleaner process.
- High-Quality Hoses
Are utilized to ensure stable liquid transport and uniform distribution while maintaining ideal back pressure for a consistent and smooth filling process.
| Model | |
| Capacity | 800-2500 BPH @1L |
| Filling Volume | 500-5000ML |
| Accuracy of Liquid Level Error Range | ≤2mm |
| Power | 2500W,220VAC |
| Weight(kg) | 580kgs |
| Air Pressure | ≤0.6Mpa |
- The overflow design can automatically recycle excess liquid, preventing dripping or leakage and reducing waste, while easily handling low-to-medium viscosity liquids and foamy products, such as fruit juice, wine, mouthwash and cleaner.
- The 304/316 stainless steel machine frame complies with GMP and CE standard. The quick-release structure of the low-position liquid tank makes cleaning more convenient.
- PLC touch screen enables real-time monitoring and recipe management. “No Bottle, No Filling” and photoelectric detection functions ensure a stable and reliable filling process.
- The amount of filling nozzles can be flexibly configured to suit your filling requirements. The overflow filler is installed with pneumatic components to achieve stable performance. It can be easily integrated to the capping and labeling equipment to build a fully automatic production line.
