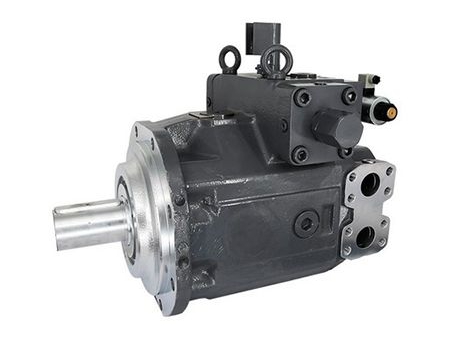

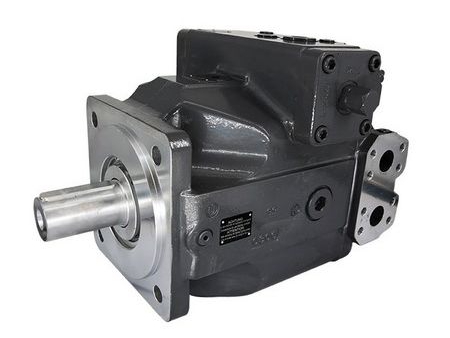

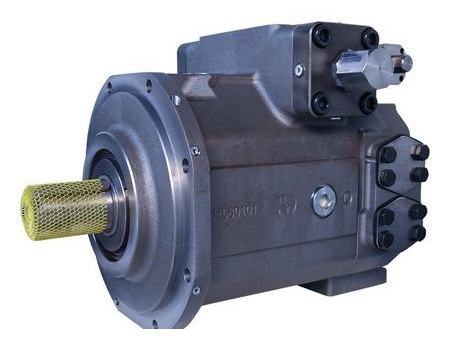

K4VSG (Replacement for A4VSG Series 10&22) Replacement hydraulic pump for A4VSG series 10&22 axial piston variable pump Manufacturer

K4VSG (Replacement for A4VSG Series 10&22) Replacement hydraulic pump for A4VSG series 10&22 axial piston variable pump

Request a Quote

View All: http://hydraulicpump-motor.com/1-1-2-2-axial-piston-variable-pump-close-circuit.html

Robust high pressure pump for industrial applications
size: 40-1000
Nominal pressure 350bar
Peak pressure 400bar
Closed circuit

Features

Low-noise
Long service life
Drive shaft capable of absorbing axial and radial loads
High power/weight ratio
Modular design
Short control times
Through drive for mounting additional pumps
Swivel angle indicator
Optional mounting location
Operation on HF fluids possible with reduced operating parameters

Technical Parameters

Size				40	71	125	180	250	355	500	750	1000
Displacement		V_{g max}	cm³	40	71	125	180	250	355	500	750	1000
Max. speed		n_max	rpm	3700	3200	2600	2400	2200	2000	1800	1600	1600
Max. speed	at n_max	Qmax	L/min	148	227	325	432	550	710	900	1200	1600
Max. speed	at n_E=1500rpm		L/min	60	107	186	270	375	533	750	1125	1500
Max. power (Δp = 350 bar)	at n_{o max}	P_{o max}	kW	86	132	190	252	321	414	525	700	933
Max. power (Δp = 350 bar)	at n_E=1500rpm		kW	35	62	109	158	219	311	438	656	875
Max. torque (Δp = 100 bar)	at V_{g max}	T_max	Nm	223	395	696	1002	1391	1976	2783	4174	5565
Torque (Δp = 100 bar)	at V_{g max}	T	Nm	64	113	199	286	398	564	795	1193	1590
Torque (Δp = 100 bar)		J	kgm²	0,0049	0,0121	0,03	0,055	0,0959	0,19	0,3325	0,66	1,20
Filling volume			L	2	2,5	5	4	10	8	14	19	27
Weight (Approx.,pump with EO1 control and valve block)		m	kg	47	60	100	114	214	237	350	500	630
Max. axial force		±F_{ax max}	N	600	800	1000	1400	1800	2000	2000	2200	2200
Max. radial force		F_{q max}	N	1000	1200	1600	2000	2000	2200	2500	3000	3500

Description

The K4VSG is an axial piston variable pump with axial piston rotary group in swashplate design for hydrostatic drives in closed circuits. The flow of the variable displacement pump is proportional to the drive speed and displacement, which can be steplessly changed by adjusting the cradle. The pistons are axially arranged to the drive shaft in its axial piston unit with swashplate design. Hydraulic fluid flows from the hydraulic pump to the motor and directly back to the pump in a closed circuit. The series is mainly used in tunnel boring machine, mining machines, ceramic press, metallurgy and other industries.

Applications

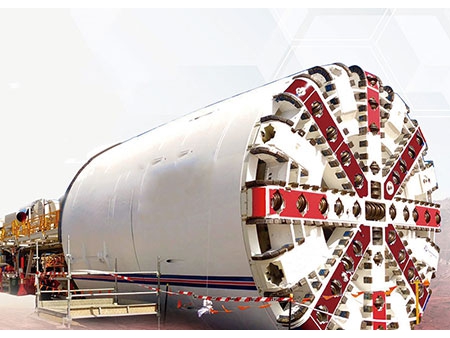

Tunnel boring machine

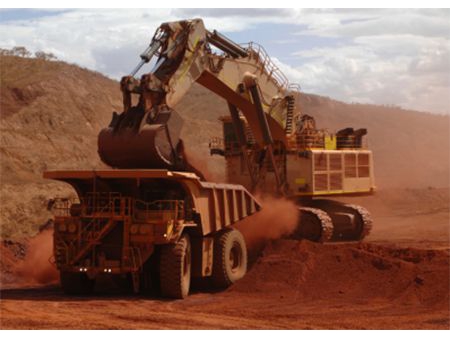

Mining machine

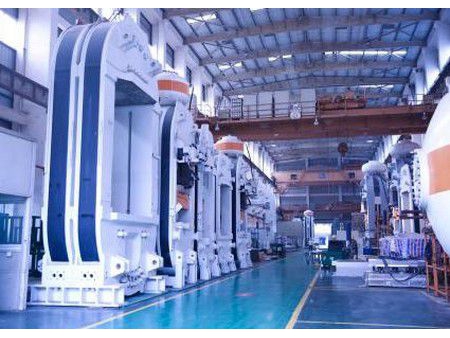

Ceramic press

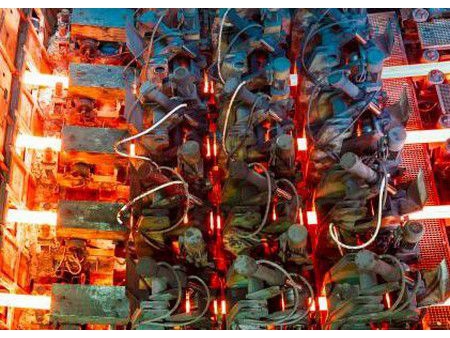

Metallurgy
