CNC shearing-machine
Request a Quote
Features
- All steel welded structure with treatment of stress relief, providing excellent rigidity and stability;
- Adopting advanced integrated hydraulic system increases the reliability and stability;
- Triple support rolling guide rail is used to eliminate the gaps of the support, enabling the shearing quality to be guaranteed;
- Gap between shear blades is electrically adjusted in an accurate, quick and easy way;
- Shear blades are rectangular-shaped with four cutting edges, offering a prolonged service life;
- Shearing angle is adjustable to minimize deformation of workpieces, enhancing the product quality and cutting speed;
- Upper blade holder is designed with an inward tilting structure, which can assist in material collection;
- With functions of sectional shearing and cut to length;
- Automatic adjusting of blade gap, back gauge stroke and shearing angle;
Details

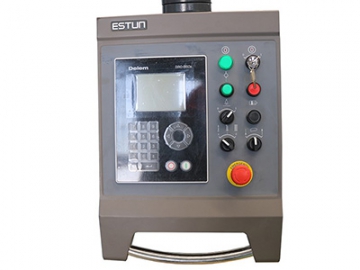

- DAC360 CNC control system

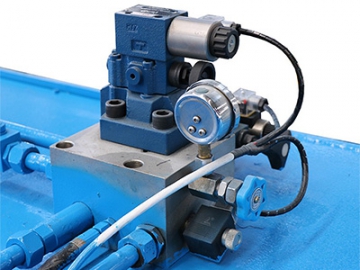

- Hydraulic valve

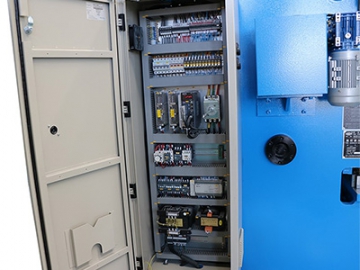

- Electrical cabinet

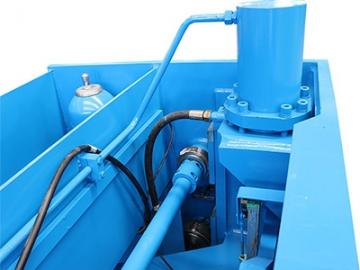

- Hydraulic cylinder
- Cut-off material collecting unit

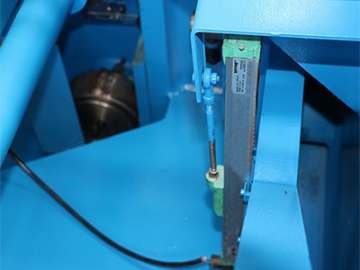

- Precision optical scale

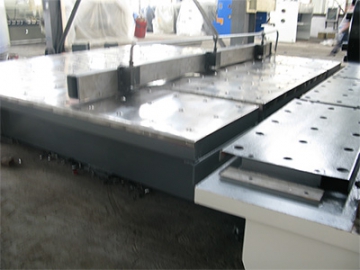

- Ball transfer table

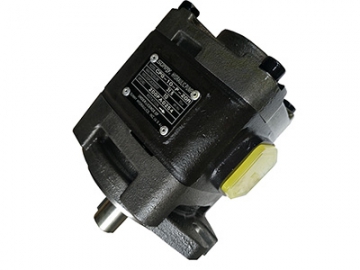

- Hydraulic pump
Optional configurations

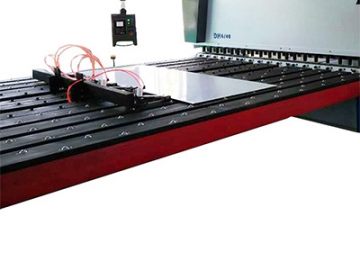

- Front in-feed table

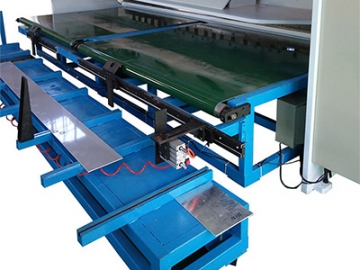

- Automatic stacking mechanism
- Pneumatic sheet support system
- Pneumatic clamping system
Specifications
| Model(QC11K) | 16x6300 |
| Shearing thickness (mm) | 16 |
| Shearing width (mm) | 5300 |
| Cutting plate tensile strength N/mm2 | 450 |
| Shearing angle (°) | 0.5-2.5 |
| Back gauge range (mm) | 20-1000 |
| Blade length (mm) | 6425 |
| Throat depth (mm) | 100 |
| Blade material | Cr12MoV |
| Main motor power (KW) | 37 |
| Oil pump( L/min) | 80 |
| Stroke (n/min) | 6-15 |
| Length (mm) | 7750 |
| Width (mm) | 2480 |
| Height (mm) | 3000 |
