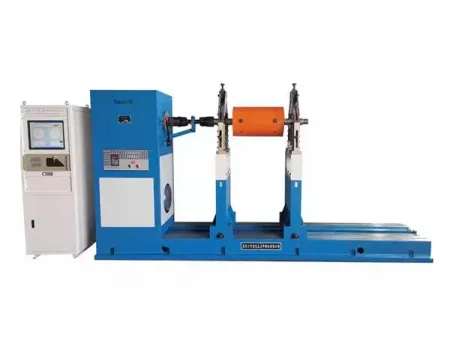

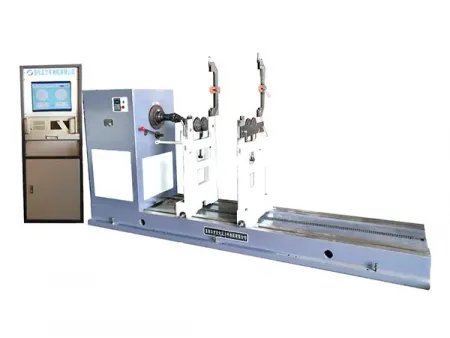

Horizontal Balancing Machine
Request a Quote
YYW-5000
Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 2500mm and maximum weight of 5000kg
- Handles rotors up to 5000 kg
- Supports diameters up to 3000 mm
- Standard length: 2500 mm, extendable to 3000 mm or 3500 mm
- Custom configurations available on request
Applications
Widely used for balancing heavy-duty components such as motor rotors, rolling mill rotors, crushers, and fan impellers.
- Motor rotors balancing
- Crusher rotors balancing
Specifications
| Max. workpiece weight | 5000kg |
| Max. workpiece diameter | 2500mm |
| Journal diameter of workpiece | Ø40-Ø300mm |
| Min. distance between two bearings | 300mm |
| Max. distance from coupling end to right bearing support | 3000mm |
| Balancing speed (variable speed control) | 180-1200r/min |
| Motor power | 22kW |
| Min. achievable residual unbalance (eMar) | ≤1g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
| Power supply | 3phase/380V/50HZ |
| Torque of universal joint shaft | 530N·m |
| Power of variable-frequency speed drive | 30kW |
| Electronic measuring system | ZL-210 dynamic balancing measuring system (touch screen) |
Features
- Uses a frequency converter for stepless speed control, with universal joint drive. The two support frames are cast and machined as a whole, giving high mechanical strength and precision.
- Simple to operate and safe to use, equipped with an advanced microcomputer digital display system.
- Integrated H-type support frame with a lightweight and reliable structure, providing low damping and high rigidity in the vibration system.
Examples of Workpieces Our Machines Can Balance
- Motor rotors
