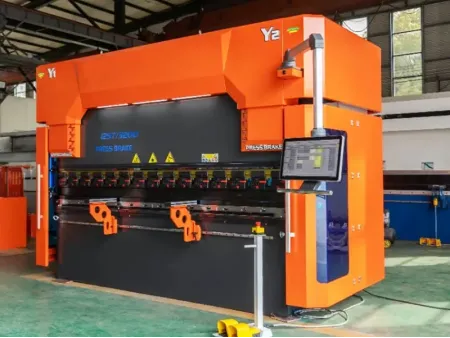

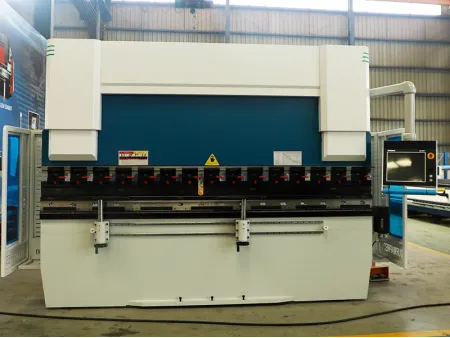

Bi-directional Servo Pump Press Brake
Sheet metal bending machine incorporating servo motor and gear pump for quick setup
Sheet metal bending machine incorporating servo motor and gear pump for quick setup
Key Specs
- Throat depth: 350mm-410mm
- Open height: 420mm-470mm
- Bending force: 80ton-220ton
- Features
- Specifications
- Examples
- Components
This bi-directional servo pump press brake integrates a servo motor with a bi-directional internal gear pump, enabling precise control over the ram speed during approach, operation, and return phases. The speed adjustments are facilitated by the servo motor to optimize the bending process.
The press brake it compatible with most CNC control systems available on the market, this model offers a direct connection to the cylinder, eliminating the need for additional piping. This design not only simplifies installation but also minimizes potential oil leaks and enhances energy efficiency. It is ideal for a wide range of applications including the bending of stainless steel kitchenware, large building steel structures, escalator metal structures, precision sheet metal components, and metal shells for electrical cabinets.
- High Precision
With an advanced electric-hydraulic system, complete control for perfect alignment, and a hydraulic system to ensure even pressure along the bend. - Intelligent Control
2D programming & 3D simulating bending sequence. - Advanced Functions
Including a crowning system, easy-release clamps, computer program control, versatile foot pedal, and back safety sensors. - Easy to Use
Designed for comfort and ease of use to minimize fatigue during operation.
| EURO-Genius EG | 80/2550 | 110/3100 | 160/3100 | 220/3100 |
| Bending force (Ton) | 80 | 110 | 160 | 220 |
| Bending length (mm) | 2550 | 3100 | 3100 | 3100 |
| Distance between uprights (mm) | 2150 | 2600 | 2600 | 260 |
| Throat depth (mm) | 350 | 410 | 410 | 410 |
| Open height (mm) | 420 | 470 | 470 | 470 |
| Ram stroke (mm) | 215 | 265 | 265 | 265 |
| Back gauge X stroke (mm) | 650 | 650 | 650 | 650 |
| Back gauge R stroke (mm) | 250 | 250 | 250 | 250 |
| Approach speed (mm/s) | 200 | 200 | 200 | 200 |
| Working speed (mm/s) | 1-20 | 1-20 | 1-20 | 1-20 |
| Return speed (mm/s) | 200 | 200 | 200 | 200 |
| X axis speed (mm/s) | 700 | 700 | 700 | 700 |
| R axis speed (mm/s) | 500 | 500 | 500 | 500 |
| Position precision of upper beam (mm) | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Main motor (kW) | 2×3 | 2×5 | 2×6 | 2×6 |
| Oil tank volume (L) | 2×20 | 2×20 | 2×30 | 2×30 |
| Weight (kgs) | 6300 | 9400 | 10800 | 12800 |

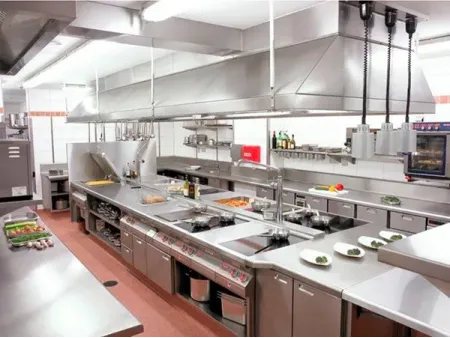

- Kitchen Utensils

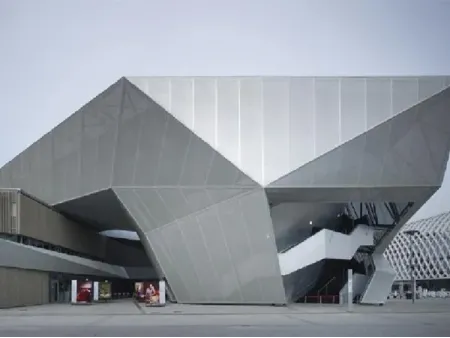

- Building Cladding

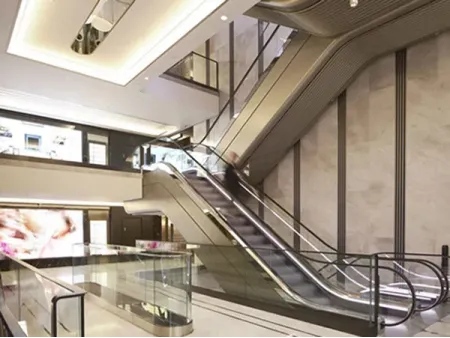

- Elevator

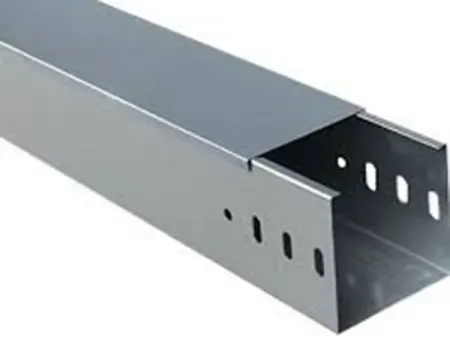

- Cable Tray

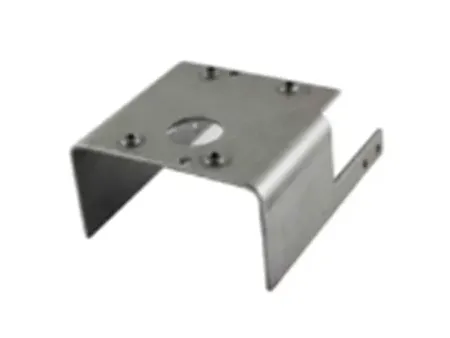

- Precision Sheet Metal

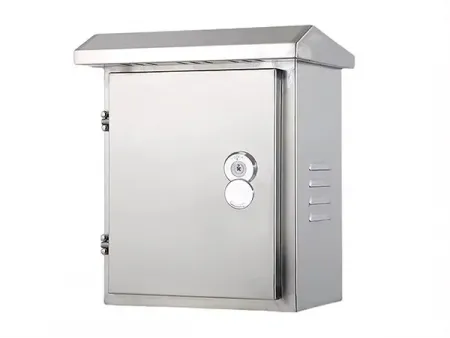

- Electric Box
Details
Controllers

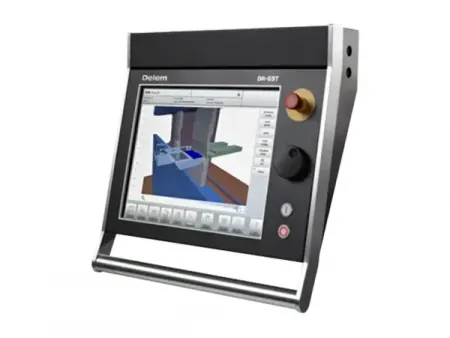

- DA69T Controller

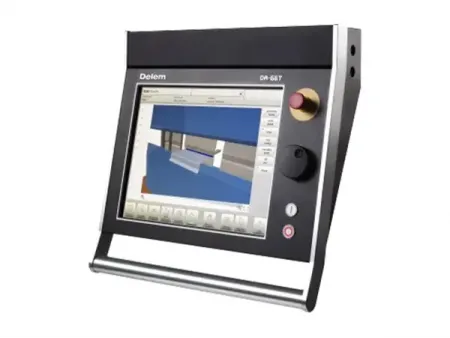

- DA66T Controller

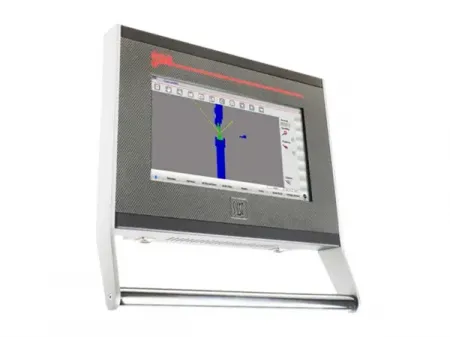

- S650 Controller
- S860W Controller
Backgaue
Our press brakes are equipped with advanced back gauge systems tailored to meet diverse operational needs. Whether your production involves complex multi-station bending, single bend operations, or specialized taper bends, our systems provide effective solutions.
Each back gauge model is meticulously designed to accommodate the specific geometry and complexity of the parts being bent. This ensures optimal precision and rapid execution, enhancing both performance and productivity.
Available Back gauge

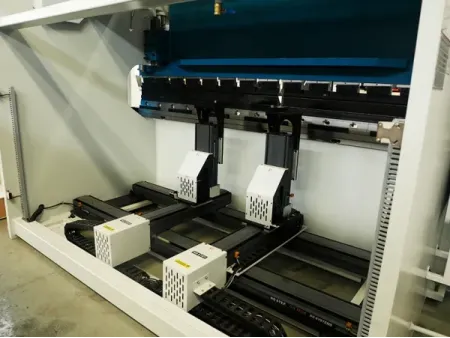

X1-X2-R-Z1-Z2 Type Back Gauge
ATF Type 6 Axis Back Gauge
X1-X2-R-Z1-Z2 Type Back Gauge
X-Prime Type Back Gauge
