CNC Turret Punch Press

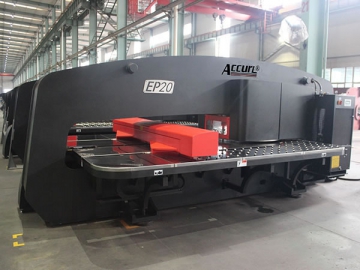

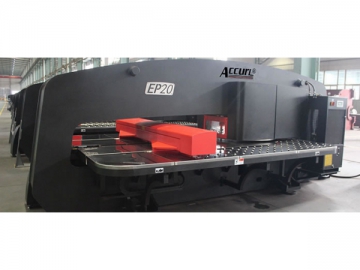

The ACCURL CNC turret punch press is an outstanding combination of performance and cost effectiveness. Our CNC punching machines feature an O-frame design and can work with mild steel sheet with a thickness up to 6.5 mm.
30 stations
The highly engineered mechanical parts in the CNC turret punch press are manufactured according to the highest precision standards. The HS3 electronic stroke control has full control over the speed and stroke of the 30 ton hydraulic punching head.
This turret press is equipped with a thick turret tool holder with 30 stations. It comes standard with 2 auto index stations. Additional auto-indexing stations are optional.
Siemens control
This series of CNC turret punch press comes standard with the Siemens 802D SL operator control system which combines CNC (NC, PLC, HMI) and drive control in a single unit.
Features
1.The T30 series of CNC machine tool is fitted with a 30 station turret tool device.
2.Thismetal fabrication equipment is designed with an advanced CNC device that can configure the entire operation.
3.CNC turret punch presses are fitted with high quality clamps to hold work pieces firmly in place during the metal punching process.
4.This series of metalworking equipment is designed with CE approved safety features.
5.The CNC turret punch has a 30 ton punching force.
6.Deep1500mm throat
7.O-frame for maximum rigidity and precision
8.Thick turret style tooling
9.Automatic sheet repositioning
10.4 auto index station
| Model | ||||||
| Punching Capacity | kN | 300 | 300 | 300 | 300 | 300 |
| Max. Machining Sheet (Repositioning) | mm | 1250 | 1250 | 1250 | 1500 | 1500 |
| 2500 | 4000 | 5000 | 4000 | 5000 | ||
| Slide Stroke | mm | 32 | 32 | 32 | 32 | 32 |
| Max. Plate Thk | mm | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 |
| Max. Punching Dia . | mm | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 |
| Die Qty. | pc | 30 | 30 | 30 | 30 | 30 |
| Punching Accuracy | mm | ± 0.10 | ± 0.10 | ± 0.10 | ± 0.10 | ± 0.10 |
| Slide SPM | mm | 600/*900 | 600/*900 | 600/*900 | 600/*900 | 600/*900 |
| Max. Speed | m/min | 106 | 106 | 106 | 106 | 106 |
| Frame | Straight | Straight | Straight | Straight | Straight | |
| O-Type | O-Type | O-Type | O-Type | O-Type | ||
| Throat Depth | mm | 1275 | 1275 | 1275 | 1525 | 1525 |
| Control Axis | pc | 4 | 4 | 4 | 4 | 4 |
| Turret Speed | r/min | 30 | 30 | 30 | 30 | 30 |
| Max. Punching Dia . Of Rotary Station | mm | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 |
| Power | kw | 25 | 25 | 25 | 25 | 25 |
| Max. Weight | kg | 156 | 156 | 210 | 210 | 235 |
| Air Pressure | MPa | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Outline Size (FB×LR×H) | mm | 5050×2700×2010 | 5050×4200×2010 | 5050×5200×2010 | 5650×4200×2010 | 5650×5200×2010 |
| Weight | t | 19.5 | 20 | 20.5 | 21.5 | 22 |
