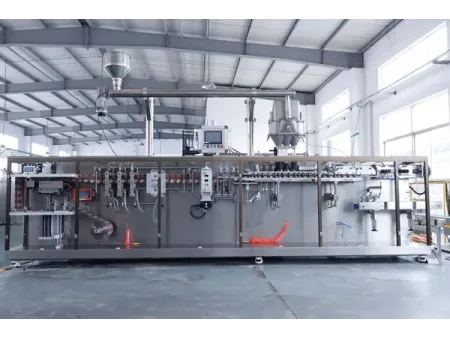

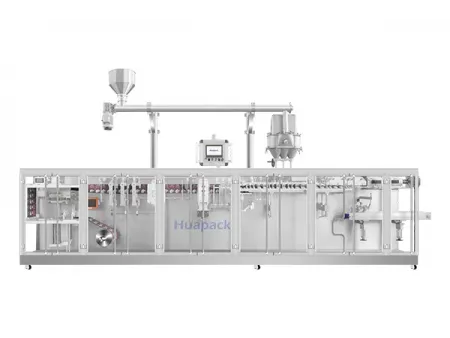

Flat Pouch HFFS Packaging Machine, 2-Nozzle Filling

Flat Pouch HFFS Packaging Machine, 2-Nozzle Filling
Flat Pouch HFFS Packaging Machine, 2-Nozzle Filling
Flat Pouch HFFS Packaging Machine, 2-Nozzle Filling
Request a Quote
180ND/240ND/280ND/330ND

Horizontal form fill seal machine

These rollstock flat pouch packaging machines with 2-nozzle filling integrate two complete packaging lanes into a single HFFS system. Both lanes share the same drive and control platform but work in parallel, so pouch forming and dosing are carried out simultaneously under the same horizontal sealing unit. This double lane (2-nozzles) design allows output to be much higher than that of single-nozzle models, which is suitable for large-scale production of the same product where high speed and stable, continuous operation are required.

Process Flow
  • Film unwinding
  • Film alignment
  • Film forming
  • Easy-tear notch unit
  • Bottom sealing
  • Vertical sealing 1
  • Vertical sealing 2
  • Hanging hole punching
  • Cutting
  • Pouch gripping
  • Dual pouch opening
  • Filling
  • Heat sealing
  • Cooling sealing
  • Finished pouches
  • Finished pouch conveying
Specifications
Performance features Rollstock flat pouch parameters 180ND 240ND 280ND 330ND
Pouch parameters Min. pouch size 60x90mm 70x130mm 70x130mm 70x130mm
Max. pouch size 90x180mm 120x300mm 140x300mm 160x300mm
Filling volume 100ml 150ml 200ml 400ml
Packaging speed ≤100 ≤120 ≤100 ≤90
Rollstock film thickness 70-150u 70-150u 70-150u 70-150u
Max. rollstock film outer diameter 500mm 500mm 500mm 500mm
Machine specifications Rollstock film core inner diameter 70-80mm 70-80mm 70-80mm 70-80mm
Machine dimensions (L × W × H) 3500x970x1450 5200x970x1460 6500x970x1460 7200x970x1460
Machine weight 1800kg 2100kg 2200kg 2300kg
Operating conditions Operating temperature ﹣10℃- 50℃ ﹣10℃- 50℃ ﹣10℃- 50℃ ﹣10℃- 50℃
Operating humidity Less than 85% Less than 85% Less than 85% Less than 85%
Power supply AC380V, 50HZ AC380V, 50HZ AC380V, 50HZ AC380V, 50HZ
Air pressure 0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa
Air consumption 200L/min 300L/min 300L/min 300L/min
Main drive power 5.5kw 5.5kw 5.5kw 5.5kw
Optional Functions

Zipper opening

Pouch hole punching

  • Sombrero hole (butterfly hole)
  • Round hole
  • Special-shape punching
  • Arc hole / Curved slot hole
  • Euro hole

Coding options

  • Hot stamp coding
  • Inkjet printing
  • Laser marking

Sealing patterns

  • Grid pattern
  • Dotted pattern
  • Plain/flat pattern
  • Vertical rib pattern
Details
Customer Case Studies

A food manufacturer in Russia purchased the 240ND rollstock flat pouch packaging machine to pack 20 g seasoning sachets. Since the machine was installed, it has been running steadily in daily production, and the customer has given positive feedback, with no major after-sales issues reported.

A combination of screw dosing, servo-controlled movement, and automatic weight compensation keeps the powder flow stable and consistent, so each pouch receives the correct amount even when the product properties change slightly during production.
